HN60HS Glass Microspheres for Oil Well Cementing and Composite Circuit Boards
Product Specifications
| Attribute |
Value |
| Product Name |
HN60HS glass microspheres |
| Applications |
Composite Circuit Board, Oil Well Cementing, Low Density Drilling Fluid |
| Diameter |
10-55µm |
| Density |
0.15-1.0 g/cm³ |
| Compressive Strength |
14000 psi |
| Chemical Composition |
SiO2, Na2O, CaO, MgO, Al2O3 |
| Color |
White or transparent |
| True Density |
0.594-0.606 |
| Bulk Density |
0.32-0.36 |
| Dielectric Constant |
1.2-2.2 (100MHZ) |
| Thermal Conductivity |
0.2 |
Product Description

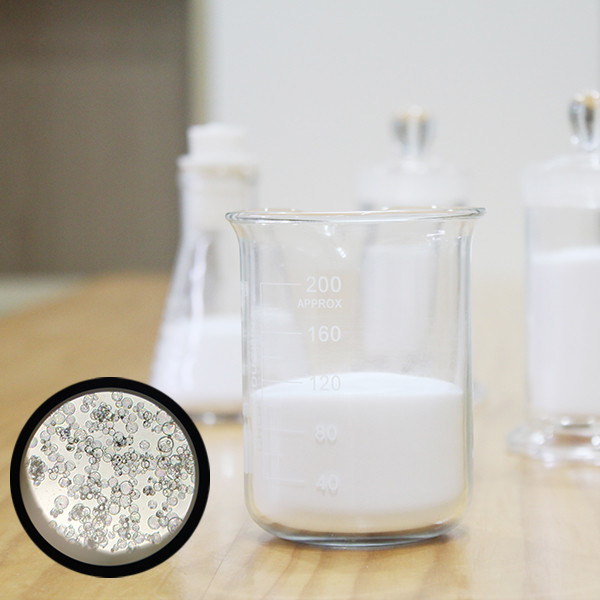

Hollow glass bubbles (HGBs) are engineered microspheres used in oil well cementing to enhance cement properties and performance. Their unique combination of low density and high strength makes them ideal for demanding applications.
Key Applications
- Thermal insulation: Reduces thermal expansion and contraction, minimizing cracking risks in wellbores
- Fluid loss control: Decreases cement permeability to improve seal integrity
- Weight reduction: Maintains strength while significantly reducing cement density
Technical Specifications
| Model |
True Density (g/cm³) |
Bulk Density (g/cm³) |
Compressive Strength (psi) |
Diameter (µm) |
D10 |
D50 |
D90 |
| HN60HS |
0.58-0.62 |
0.30-0.34 |
12000 |
15 |
35 |
70 |
Product Advantages
- Light weight filler with exceptional strength
- Enhances cement stability and rheology
- Superior filtration control properties
- Improves thermal insulation characteristics
Why Choose Hainuo Glass Bubbles?
- Over 20 years of specialized HGB manufacturing experience
- Ranked among top global HGB manufacturers
- Rigorous quality control with comprehensive testing capabilities
- Consistent product performance and reliability
Frequently Asked Questions
Can you tell me more about packaging options for HGBs?
We offer standard packaging in cartons and ton bags, with dimensions varying by product model and density. Custom packaging solutions are available upon request.
What are Hainuo Technology's credentials in HGB manufacturing?
Founded in 2011 with government-backed research, we've achieved significant technological breakthroughs and earned recognition as a "High-Tech Enterprise" and "Outstanding Enterprise in Shanxi province." Our products are used in major national projects by CNPC and CNOOC.
What safety precautions should be taken when handling HGBs?
Handle packages in ventilated areas with minimal vibration. For sensitive individuals, safety glasses and gloves are recommended. Keep packages sealed when not in use.
What are the primary benefits of using hollow glass bubbles?
HGBs enhance thermal insulation, fluidity, stiffness, strength endurance, and chemical resistance while reducing material weight.
What industries commonly use hollow glass bubbles?
HGBs are widely used in aerospace, rubber, plastic, marine, and construction industries as lightweight performance enhancers.
What is the typical density and size range of HGBs?
Density ranges from 0.11-0.606 g/cm³ with sizes from 10-115µm, varying by application requirements.
Are HGBs environmentally friendly?
Yes, made from natural sand, they're recyclable and environmentally safe throughout their lifecycle.
Can HGBs be used in 3D printing?
Yes, they reduce weight and improve strength in 3D printing materials while enhancing printability.
Can HGBs be used in concrete applications?
Yes, they serve as lightweight aggregates that improve thermal insulation, fire resistance, workability, and durability.
What is Hainuo's production capacity?
Current annual capacity is 15,000 tonnes, expanding to 35,000 tonnes by 2026 with new production lines.
How should HGBs be stored?
Store in dry, cool areas away from direct sunlight. Keep packages tightly sealed to prevent particle emission.
