4000 Psi HN38 Glass Micro Spheres Syntactic Foam Thermoplastic

4000 Psi HN38 Glass Micro Spheres Syntactic Foam Thermoplastic

glass micro spheres Syntactic Foam

HN38 glass micro spheres

4000 psi glass micro spheres Thermoplastic

Place of Origin:

SHANXI CHINA

Brand Name:

HAINUO

Model Number:

HN38

Contact Us

Request A Quote
Product Details
Product Name:
HN38 Glass Microspheres
Application:
Aviation Materials
Diameter:
20-75 µm
Density:
0.15-1.0 G/cm³
Compressive Strength:
4000 Psi
Chemical Composition:
SiO2, Na2O, CaO, MgO, Al2O3
Color:
White Or Transparent
True Density:
0.36-0.40
Bulk Density:
0.18-0.20
Dielectric Constant:
1.2-2.2(100MHZ)
Thermal Condictivity:
0.127
Payment & Shipping Terms
Product Description

Tooling Board, Hollow Glass Bubble,HN38,Thermoplastic , Synthetic Foam

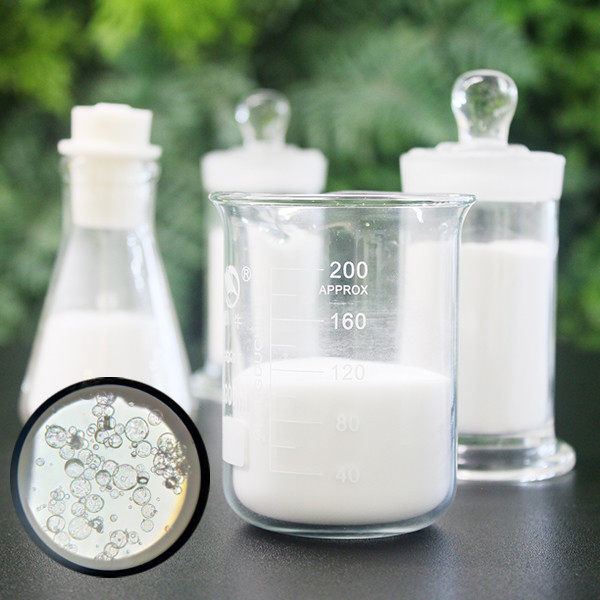

Hollow Glass Bubble Description:



Tooling board is a material used in the manufacture of prototypes, molds, and other composite parts, hence the use of hollow glass bubbles does effects in its production and performance,it can not only enhance its thermal insulation properties and improve energy efficiency but also reduce the risk of warping or distortion during the manufacturing process.



4000 Psi HN38 Glass Micro Spheres Syntactic Foam Thermoplastic 0



Hollow Glass Bubbles Application :



1.Prototyping:

Hollow glass bubbles are used in the manufacture of tooling board prototypes, providing a lightweight and durable material option that can be machined and shaped into the desired form.



2.Molds:

Hollow glass bubbles are used in the manufacture of tooling board molds, providing a lightweight and durable material option that can withstand the pressure and heat of the molding process.



3.Jigs and fixtures:

Hollow glass bubbles are used in the manufacture of tooling board jigs and fixtures, providing a lightweight and durable material option that can be easily machined and shaped into the desired form.



Model True Density(g/cm³) Bulk Density(g/cm³) Thermal Conductivity(w/m·k)
At20℃
Dielectric Conductivity(100MHZ) Compressive Strength(psi) Diameter(um)
D10 D50 D90
HN38 0.36-0.40 0.18-0.20 0.127 1.2-2.2 4000 20 45 75



Product Advantages:

Lightweight,Wear Resistant,Enhance Mechanical Performance



Why choose us?

1,Specialized in manufacturing Hollow Glass Bubbles over 2 decades.
2,Rank in the list of largest HGBs manufacturers.
3,Ensured product quality,density radius and compressive strength , very expect any kind test from our customers.
4,Stablized product performance, reliability priors most to us.





FAQ:

Question 1:Can you tell me more package details of Hainuo HGBs?



Answer1: We mainly offer customers package options of cartoon and ton bags, our HGBs packages varies their dimension size based on their model and density difference, customers can choose their preferred package plans via contact Hainuo team in advance.

Answer2:For better meet customer’s special requirement of their diversified application field, Customers can contact in details with Hainuo team for a feasible customized package service.



Question 2, Can you tell a brief progress history of Hainuo Technology and what specific achievement and merits rewarded in the HGBs field?



Answer1: The Hainuo Technology’s history can trace back to 2010s,officially founded in 2011s, the Hainuo technology was backed the research by several renowed Governement owned institutions and authority agencies and hence get tremendous technology breakthough in a short time and now rank in the global list of most competitive manufacturers.

Answer2: The Hainuo Technology has been rewarded for several significant national prize and honor reward include the title “High-Tech Enterprises”, “Outstanding Enterprise in Shanxi province”..,Whats more the Hainuo Glass Bubble is applied in many significant China national oil and ocean projects by CNPC and CNOOC those Monopolized Enterprises.



Question 3,What protection steps should users take and be cautious when remove HGBs exterior package?

Answer1: Before the unpackage,please place cartoon box or Ton bags in spacious area with effective ventilation conditions,then gently and slowly remove packaging bands of the cartoon and softly open the inner small package bags.To better mitigate the dust emission ,lift and down of bags should be controlled within slight vibration and shake.

Answer2: Users simply need mind the dust emission during unpackaging ,both lift and down of bags should be controlled within slight vibration and shake.for user’s skin who have allergic symptom to dust and other micro substance contact ,other safety protection kits is suggested including safety eyeglass and gloves, please contact local safety kits servicers for professional suggestions.



Question 4, What are advantages of using hollow glass bubbles ?

Answer: Hollow glass bubbles can be applied as a lightweight filler in various industries,it has multiple advantages not only enhance products’ Thermal Insulation, Fludity&Stiffness but also hugely improve the original strength endurance and Chemical Resistance.



Question 5,What are some common applications of hollow glass bubbles?

Answer: Hollow Glass Bubbles covers wide application in Aerospace,Rubber,Plastic,Marine and Construction industries.HGBs are used as lightweight fillers which will improve products performance and effectively reduce original production cost.



Question 6, What is the range of Hainuo HGBs density and size range?

Answer: It varies based on their physical application ,The typical density range of Hainuo Glass Bubble is 0.11-0.606 g/cm³and the size range from 10um to 115um .



Question 7,Are Hollow Glass Bubbles products environmental friendly?

Answer: Hollow Glass bubbles are environmental friendly product as its made from natural sand so will not cause any side effect to both users and environment ,they can be recyclable reused.The Hainuo Technology Co.Ltd very stress this code and coherent it throughout the whole production, this is also the idea and brand image that Hainuo deliver to the public society .



Question 8,Can Hollow Glass Bubbles be used in 3D Printing?

Answer:Yes, hollow glass bubbles can be added to 3D printing materials, such as polymers and resins, to reduce their weight and improve their strength. They can also improve the printability of materials and reduce warping.



Question 9,Can Hollow Glass Bubbles be used in Concrete?

Answer:Yes, hollow glass bubbles can be used as a lightweight aggregate in concrete to reduce its weight and improve its thermal insulation and fire resistance. They can also improve the workability and durability of concrete.



Question 10,What is the annual total production volume of Hainuo HGBs ?

Answer:The Hainuo is currently able to meet altogether 15000 tonnes requirement every year and this volume is hugely increasing with the construction of its second line production project. By year 2026 ,the yearly production volume is expected grows to over 35000 tonnes.



Question 11,Is there anything attention or be noted when storing hollow Glass Bubbles?

Answer: Yes,there are some imperative measures should be taken to ensure stored glass bubbles in good condition. HGBs packages should be placed and stored in dry area where not much damp and moist affections,whats more,HGBs storage should avoid exposure to direct sunshine,it is better they are stored in a cool and dark place.Besides, its necessary to keep all packages tightly sealed in case its emission as they are very micro particles.
